South Crofty Mine Inside 2016: Whilst onsite Tracy and I had the surprise invitation to have a look around the remaining buildings. Thanks to Paul for giving up his time to show us around. This page contains the images I took, it will be added to as I print more. It was both interesting and sad, bearing in mind the last time I had been in many of these building was when the mine was open.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.1 – The Blacksmith’s Shop had hardly changed since I had last seen it, everything was still as it had been left. Much of the floor space had however been used for storage.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.2 – One of the forge has obviously been used as a birds nest at some time.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.3 – All the equipment was still where it had last been used, fading signs on the wall, it was all very sad.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.4 – Piles of drill steels, still waiting to be sharpened after many years.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.5 – Metal clamps and hooks still hanging on the wall.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.6 – I am sure somebody will know the use of these items.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.7 – A layer of rust covered all the metalwork hanging up.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.8 – This is part of the cylinder cover from the Cook’s Shaft pumping engine, found in a pile of rubble.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.9 – It was quite spooky, it just felt that time had stopped.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.10 – An electric powered hacksaw, it was quite a beast.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.11 – And an image from the side, in the background is one of the light charging racks that the mine used when it was open.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.12 – The blacksmith’s rest room, I don’t think anyone had been in here for years.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.13 – Still there after so many years, a pneumatic hammer made by Alldays and Onions of Birmingham. It probably dates back to he 1930’s.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.14 – A front view of the pneumatic hammer.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.15 – A final “arty” image from the Blacksmith’s Shop for South Crofty Mine Inside 2016, it caught my eye as I left the building.

This next part of this South Crofty Mine Inside page was taken in the North Winder House. The original shed was sold sometime ago and a smaller shed was erected for storage and to protect the winder from the weather.

South Crofty Mine Inside 2016

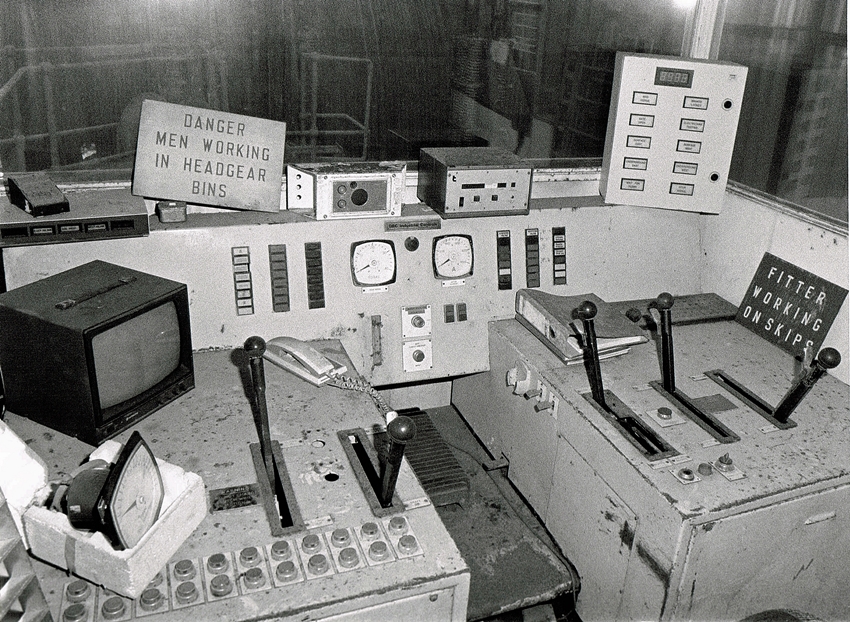

South Crofty Mine Inside 2016.16 – This is the driver’s cabin for the North Winder.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.17 – This is one of the huge electric motors that powered this wonderful machine.

South Crofty Mine Inside 2016

South Crofty Mines Inside 2016.18 – One of the huge drums of the winder. These drums had a diameter of 3.81m, they weigh 26 Tons each and would rotate at 38.3 R.P.M.

South Crofty Mine Inside 2016

South Crofty Mines Inside 2016.19 – A closer image of the internals of the drum.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.20 – A detailed image showing the braking arms on each of the drums.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.21 – The winder from the other side, the 35mm wire rope can be clearly seen on the drum.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.22 – The years had taken their toll on the winder, it would be nice to think she will be up and running again someday.

South Crofty Mine Inside 2016

South Crofty Mine Inside 2016.23 – This great drum pulled skips from the mine that could carry between 6-8 tons, the winder would bring them to grass at 25ft per second.

The next section of this South Crofty Mine page was taken inside the South Winder Shed, I required special permission to gain access here, as well as personal safety equipment and face mask.

South Crofty Mine Inside 2016

South Crofty Mines Inside 2016.24 – The South Winder was used primarily for manriding in New Cooks Kitchen Shaft, built in 1959 by a company called Fullarton. It was installed here in the 1970’s having been purchased from a closed colliery and converted from steam to electric power.

South Crofty Mine Inside 2016

South Crofty Mines Inside 2016.25 – Over the years of closure the winder had suffered, a combination of rust, neglect and bird droppings.

South Crofty Mine Inside 2016

South Crofty Mines Inside 2016.26 – My favourite image of the winder on this page, the photo gives an idea of the size of the interior of the winding shed. I took so many pictures that day, but this is the one that really came out well.

South Crofty Mine Inside 2016

South Crofty Mines Inside 2016.26 – The great drive motor for the winder.

South Crofty Mine Inside 2016

South Crofty Mines Inside 2016.27 – Both the drums from the front, still loaded with wire rope.

South Crofty Mine Inside 2016

South Crofty Mines Inside 2016.28 – The main drive axle between the two drums, in the background is one of the many control panels in the building.

South Crofty Mine Inside 2016

South Crofty Mines Inside 2016.29 – This image is looking between the two drums.

South Crofty Mine Inside 2016

South Crofty Mines Inside 2016.30 – A side on view of one of the huge drums. These are 16ft in diameter, there was enough 1 1/2” steel rope to drop the 2,400ft shaft with a maximum reach of 3300ft available.

South Crofty Mine Inside 2016

South Crofty Mines Inside 2016.31 – Part of the complicated drive gear.

South Crofty Mine Inside 2016

South Crofty Mines Inside 2016.32 – The drivers cabin for the South Winder.

South Crofty Mine Inside 2016

South Crofty Mines Inside 2016.33 – The control panel for the underground pump stations.

There are more images which will appear on this page when I have printed them in the darkroom.
